Installing a sliding glass door in Australia starts with a verified opening, a door assembly suited to the project loads, and an installation detail that drains water to the exterior. The frame must be installed square, level and plumb without blocking its sill drainage, while flashings, seals and fixings must suit the wall type and exposure. Because an external glazed door affects structure, weatherproofing, safety glazing and energy performance, it is not simply a matter of fastening a stock frame into a hole. Use the door manufacturer’s instructions, the approved building design and the current National Construction Code (NCC) pathway. Structural alterations, electrical relocation, waterproofing interfaces and jurisdiction-specific approvals may require licensed or registered practitioners.
Key takeaways
- Confirm the wall opening, structural support and approvals before ordering the door.
- Select a complete tested assembly rather than treating the frame, glass and hardware as unrelated parts.
- Keep sill drainage open and connect the frame to the wall’s water-control layers.
- Check glass safety, wind, water, air and energy requirements for the actual project.
- Record the final adjustment, drainage check and handover documents after installation.
What does installing a sliding glass door involve?
A sliding glass door installation is the coordinated placement of a framed, glazed and operable door into a prepared building opening. It includes supporting and fixing the frame, integrating flashings and seals, glazing where the product is not factory glazed, adjusting rollers and locks, protecting drainage paths, finishing the adjoining wall and verifying operation.
This guide is for Australian homeowners, builders, designers and project managers planning an external sliding glazed door. It explains the control points used to brief and review an installer; it does not replace the manufacturer’s installation instructions, engineering details, approved drawings or local regulatory advice.
Checks to complete before ordering
1. Confirm whether the opening is new or existing
A like-for-like replacement may still reveal damaged framing, an inadequate lintel, an uneven slab or missing flashing. Converting a window or solid wall into a door is a larger alteration because loads need to be transferred around a wider opening and the finished threshold must coordinate with interior and exterior levels. Have a competent building professional confirm the scope before fabrication.
2. Measure the structural opening, not the old frame alone
Record width and height at several points, diagonals, wall build-up, sill level, reveal depth, cladding type and access constraints. The order size must preserve the manufacturer’s required installation clearance. A tight frame can be bowed by the structure; an excessive gap can make correct support and sealing difficult.
3. Define exposure and performance
Provide the supplier with project design pressures or the information required to determine them. Also nominate building class, storey, terrain and shielding context, orientation, coastal or industrial exposure, energy targets, bushfire requirements where relevant, accessibility needs, safety glazing locations, screen type and security expectations. A suburb is not a complete performance brief.
| Input | Why it matters | Evidence to request |
|---|---|---|
| Opening and wall detail | Controls size, support, flashing and finishes | Shop drawing and installation detail |
| Wind and weather exposure | Controls structural and water performance | Relevant test or engineering evidence |
| Glass and energy schedule | Controls safety, heat flow and solar gain | Exact glass build-up and whole-door values |
| Threshold and drainage | Controls water path and trip/access conditions | Sill section and interface detail |
| Finish and hardware | Controls durability, operation and maintenance | Finish specification, hardware schedule and care guide |
A practical sliding glass door installation sequence
- Review approved information. Match the delivered door label, size, handing, glass, finish and performance evidence to the opening schedule.
- Inspect the opening. Check structure, level, plumb, diagonals, support, moisture condition and the continuity of wall membranes before concealing anything.
- Prepare water-control layers. Install the specified sill flashing, end dams, head flashing and jamb treatment in the correct lap sequence for the wall system.
- Dry-fit and support the frame. Place load-bearing packers at nominated points, including beneath jambs and mullions, while keeping designed sill drainage unobstructed.

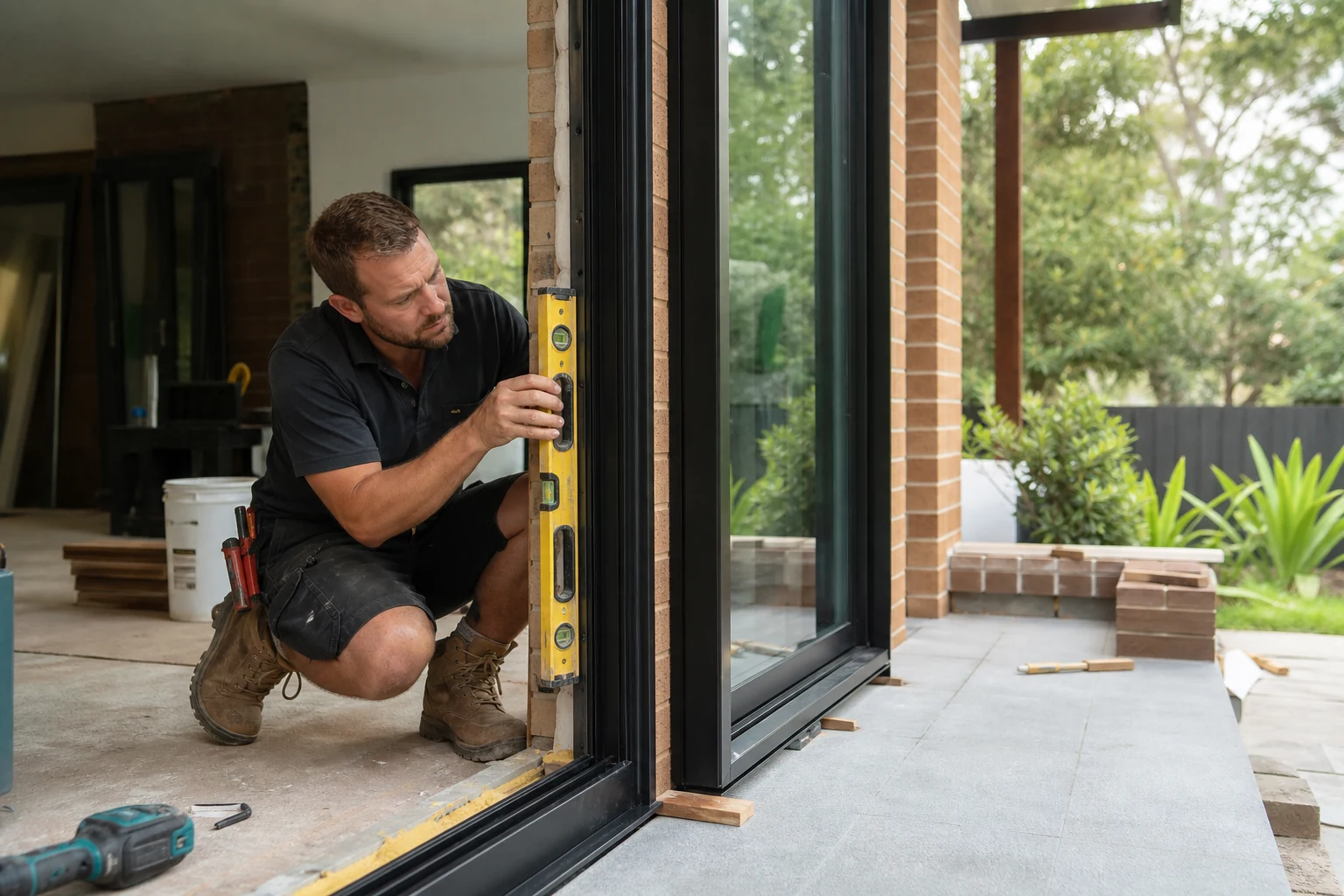

- Square, level and plumb. Check the frame before and during fixing. Fixings should secure the assembly without distorting tracks, jambs or head members.
- Complete perimeter seals. Use the specified sealant, backing and joint geometry. The exterior weather seal and interior air seal have different jobs and must not trap water.
- Install or verify glazing and panels. Follow manufacturer requirements for setting blocks, beads, gaskets, panel engagement and anti-lift details.
- Adjust and test. Set rollers, interlocks, locks and stops; confirm smooth travel, consistent reveals and positive latching.
- Water-manage and finish. Confirm weep paths, remove debris, complete cladding and interior finishes, and protect tracks until construction is complete.
The Australian Glass and Window Association residential installation guide includes illustrated guidance for aluminium and other framed sliding doors. Use it with the product-specific instructions rather than as a substitute for them.
Why sill drainage and flashing matter
A sliding door sill is expected to manage incidental water. Water can enter the outer track during wind-driven rain and should leave through the designed drainage outlets. Packing, sealant, render, flooring or construction debris must not block that route. The sill also needs a safe discharge point outside the building.
Frame drainage cannot compensate for an incomplete wall detail. Head and sill flashings, membrane laps, cavity closures, end dams and perimeter seals must work together. The NCC weatherproofing provisions require external walls and their openings to prevent water penetration that could cause unsafe conditions, loss of amenity, dampness or deterioration. For current code context, check the ABCB’s current NCC edition page and the provisions applicable to the project and jurisdiction.
What Australian compliance evidence should be checked?
For framed sliding glazed doors covered by the applicable pathway, NCC provisions reference AS 2047 for relevant structural and water-penetration performance. Safety glass selection and installation are addressed through NCC glazing provisions and referenced standards such as AS 1288. The exact requirements depend on the building, location and configuration, so do not transfer a certificate or glass note from a different door size.
Energy assessment should use the complete frame-and-glass assembly. The Australian Government’s YourHome glazing guide explains whole-window U-value and solar heat gain coefficient (SHGC). Compare rated whole-product values where available, then match them to climate, orientation and shading. Forge’s WERS ratings guide explains the terms, while the Low-E and double glazing comparison helps separate coating and insulated-glass decisions.
Approval and practitioner rules vary across Australia. The Australian Government’s renovation planning guidance recommends checking local approval needs, particularly where exterior changes or specialist work are involved.
Sliding door handover checklist
- Door identity, size, configuration and glazing match the approved schedule.
- Frame is visibly straight and panels travel without binding or scraping.
- Interlocks engage, locks operate and any anti-lift or restrictor devices are fitted.
- Sill outlets are clear and exterior drainage is not obstructed.
- Perimeter sealant is continuous and compatible with adjoining materials.
- Finish damage, glass scratches and construction contamination are recorded.
- Test reports, drawings, installation instructions, warranty and maintenance information are retained.
Browse the Forge Windows product range to identify relevant systems, then send the opening schedule and performance brief through the contact page. Exact sizes, ratings, installation scope and availability must be confirmed for the selected system.
Frequently asked questions
Can I install a sliding glass door myself?
A simple replacement can still involve heavy glazing, structural support, weatherproofing and local approval rules. DIY suitability depends on the opening and jurisdiction. Use a competent installer and obtain professional advice where the wall is altered, services move or compliance work is required.
Should a sliding glass door sill be perfectly level?
The frame should be installed to the manufacturer’s level and support requirements so panels track and drain as designed. Do not create an improvised fall by twisting the sill. Exterior surfaces and flashings should direct water away without blocking the frame’s drainage outlets.
Do I need flashing above and below a sliding glass door?
The required head, jamb and sill treatments depend on wall construction, exposure and the approved design. External openings generally need continuity with the wall’s water-control layers. Follow the project detail, product instructions and applicable NCC pathway rather than relying on sealant alone.
What glass is required in a sliding door?
Glass type and thickness depend on pane dimensions, support, wind actions and human-impact risk. Doors are impact-prone locations, but the exact safety glazing selection must come from the applicable NCC and referenced standards, the design and the supplier’s verified configuration.
How do I check an installation before paying the final invoice?
Check identification, configuration, smooth travel, alignment, locks, seals, clear drainage and visible finish quality. Collect drawings, performance evidence, installation instructions, warranty and maintenance records. Record unresolved defects in writing and confirm the agreed rectification process before final completion.
